PLEASE CLICK CHECKBOXES TO SELECT YOUR OPTIONS...........
MAXIMUM SIZES>>>      55"w x 42"h                55"w x 42"h                 64"w x 44"h                  64"w x 44"h                    64"w x 44"h
1) Pick a Design:
***Design 4 Spiral Cassette requires 13-1/2" x 4-1/2"of space.
I am using Design 4, 5 or 6 and plan to use a pair of doors in the same opening (Maximum opening width if a pair of doors are used is 128").
     *Opening dimensions entered below will include both doors.
__________________________________________________________________________________________________________________________________

2) Pick a Slat Profile & Color:
     (Here is where you will be choosing to go with (E23 Line in Poly Plastic) or (ML Line in Aluminum)
Polypropylene E23 Line:
   E23 Line Colors:        White        Gray        Black        Printed Aluminum
   ***This Door Slat has 3) 5/8" wide independent Slats built in it's construction.

_________________________________________________________________________________________________


ML Line, Aluminum Clad - 3/4" Slat:
    ML Line Colors:        Aluminum        Stainless Steel

____________________________________________________________________________________________________________________________________

3) Enter your exact inside cabinet opening sizes where the unit(s) will be installed:
Qty:         Width:         Height:         Depth:

Qty:         Width:         Height:         Depth:

Qty:         Width:         Height:         Depth:

*If you have more doors of different sizes, enter more here:
_______________________________________________________________________________________________________

4) Will this be a locking door?
        Yes         No _______________________________________________________________________________________________________

5) Finger-Pulls & Handles:
                     or

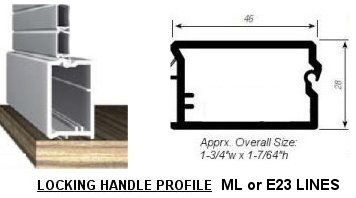

     *Locking Handle Profiles are needed if your door needs a lock or if you simply prefer the look of this handle.
     *E23 Lines will be quoted with our large "Locking Handle Profile" as standard, you can also add one of the Lifting Options below.
     *ML Lines quoted with our "Combo Grip" that has a built-in finger-pull. If locking, the "Locking Handle Profile" and one option below is needed.
     *(We will quote Handles by-the-foot if applicable.)

    My Door has a Lock & will need (or prefer) the Locking Handle Profile.
    My Door is in the ML Line and I want to use the Combo-Grip Handle shown above.

    Lifting Options:
    Mid-Grip Finger-Pulls can be used above the Locking Handle Profile or we also have Bow Handles shown below for lifting.
                 Mid-Grip Finger-Pull                     Bow Handles (Not needed if using Combo-Grip above)
   Use Mid-Grip Finger-Pull above handle        Include our 5" Bow Handles          Include our 8" Bow Handles
   No Lifting Option Needed.

_______________________________________________________________________________________________________

6) Is your cabinet Frameless or Face Frame construction?
      Frameless        Face Frame
      *(Frameless cabinets will have only about 3/4" face width on front and no frame mounted on the cabinet box)
     *(Face Frame cabinets will have a 3/4" thick wood frame mounted on the cabinet box face)
     *(The frame usually is 2" wide but can vary from about 1" to 3" in width)

________________________________________________________________________________________________________

7) Track Systems: (*2 Rows of track options below)
    *(Hidden & Recessed Tracks are usually hidden behind your cabinet face and are Poly Plastic. These would be less expensive options)
    *(Aluminum Tracks with matching covers are more expensive options and available by-the-foot)

ROW 1:    Surface Mount Track Systems:          A3 Aluminum         A3 Poly Plastic Basic Track
     Choose your track options:   A3 Aluminum        With Matching Cover      Without Matching Cover
                                                 or:   A3 Poly Plastic in       Black   or   Silver
     When door is complete, will your tracks be?:   Hidden        Exposed      Recessed (see below)
     *We will quote the Tracks and track covers by-the-foot if applicable.


ROW 2    Recessed Options:          A4 Straight                 A4-2 Flexible
    *(A4 shows a side view of our PVC Plastic Recessed Straight Track & 90deg corners in Black, *requires routing, *less expensive)
   *(A4-2 shows a side view of our PVC Plastic Recessed Flexible Track in Black, *requires routing, *less expensive)

   *Face Mount (or overlay mount) Tracks are available but these are special order. Other accessories such as handles & fascia would need to be used along with these. These are all special order and only available in full 98" lengths. Shipping is also pricey for these. A face mount example is shown just below in the picture with the dishes inside.  Quote these with Face Mount Accessories

________________________________________________________________________________________________________

8) Top Fascia or "Cover Profile" needed? Yes  No
*(For Designs 4, 5 & 6 this is normally used Vertically on the ends of the opening)
*(We will quote Aluminum items by-the-foot if applicable. You may also build you're cabinet box with a top cover profile as an alternative)

   Send extra Cover Profile material for other use. Send Qty. *Enter Qty and per ft up to 8' Lengths

_________________________________________________________________________________________________________

9) Quote shipping type: Ground        2nd Day Air        Next Day Air        AM Delivery (AM for Air options Only)
     *Allow 1 - 2 Business Days for order processing. Expedited will be given priority.

_________________________________________________________________________________________________________
