   POLY & ALUMINUM TAMBOUR DOOR KITS
       SORRY, DUE TO UNSTABLE MARKETS OUR PRICING MAY NOT BE CURRENT AT OUR WEB-SITE


************

POLYPROPYLENE & ALUMINUM ROLL-UP TAMBOUR DOOR KITS
 QUOTE DESIGN 2                                                  QUOTE DESIGN 2                                                    QUOTE DESIGN 2
 LIGHT DUTY ROLL-UP TAMBOUR DOORS (Up to 46-1/2" opening width) VERTICAL OPERATING DOORS - CUT TO SIZE - SEE BELOW
(A Maximum width of 51-1/2" cabinet opening size can be achieved by ordering parts, cutting & installing, SEE QUOTE FORM.
***FOR LARGER OR MORE SECURE DOORS, ALSO SEE: Heavy Duty Roll-Up Aluminum Doors
***FOR FULL PARTS LIST AND LOWER COST TAMBOUR DOOR DESIGNS & OPTIONS, SEE: PVC & Aluminum Tambour Door Systems

FOR TAMBOUR DESIGN 2 DOOR KITS, PLEASE START HERE:
 ***OUR DESIGN 2 KITS ARE CURRENTLY AT APPRX 5 WEEK PRODUCTION TIME***
WELCOME,
THESE DOORS HAVE MANY OPTIONS SO WE SUGGEST THAT YOU REVIEW THE PRICES & INFORMATION BELOW THEN USE OUR QUOTE FORM TO START DESIGNING YOUR DOOR. WE WILL RESPOND AS SOON AS WE CAN WITH YOUR QUOTE. STANDARD KIT SIZES AND PRICE TABLE IS ALSO SHOWN BELOW FOR YOUR REVIEW. FOR SMALLER UNITS DESIGN 1 MAY BE MORE PRACTICAL UNLESS YOU MUST HAVE THE UNIT ROLL UP AT THE TOP. GENERALLY, DESIGN 1 WOULD BE ABOUT $100.00 LESS THEN DESIGN 2. See Other Tambour Door Designs
OR CLICK HERE FOR OUR QUOTE FORM: DESIGN 2 ONLINE QUOTE FORM (Your browser must be set to allow pop-up windows)
(If you know the kit you would like to order, please use our [ORDER FORM] or send in a Company PO.)

Introduction:
 This Tambour Door Line consists of 2 different slat styles that come in multiple colors shown below. From Appliance Garages, to Utility Carts, to Cabinet Openings, the sky is the limit for these space-saving designs. To make it easy, you can order kits that are cut to size and ready to install. Our C3 Counterbalance Lifting System insures smooth and easy SPRING LOADED ROLL-UP operation. The pre-cut kits below are only Vertical Operating and are only available in our Design 2. Standard designs fit into a Frameless Style Cabinet opening that is required to have 5" - 8" of available space at the top for the C3 mechanism. For apprx 24" Height Doors we recommend using our manual operating Design 1 if possible. Our standard sizes for kits are shown below and please also note the "opening sizes" required for the cabinet box. Custom sizes and parts are also available and explained in more detail below. Locks & Handle options are shown at the bottom of this page. Installation Screws are not included for most items. Standard size kits are a 2 week production time and are non-returnable. If you need your kit sooner, you can select to order parts & cut yourself in our quote form.

CUSTOM SIZED KITS
We can custom make to fit your exact size opening. "A5" for overlay installations. And our "A3" install can also be produced for inset doors, this is where the full kit with track & components will fit "inset" into your existing opening. Click: TRACK APPLICATIONS to review these options.  We do also offer a 1" wide Slat shown on the quote form. There is a 2.5 week lead-time for custom sized kits and they are non-returnable. For custom kits you need to submit for a quote with our quote form. Custom Kits can also be priced below by using the next highest opening sizes shown and adding 5% to get the price for custom kits . Adding Locks & different Handles also increases the price.
CLICK HERE FOR QUOTE FORM: DESIGN 2 ONLINE QUOTE FORM (Your browser must be set to allow pop-up windows)

BUILDING YOUR CABINET BOX
The Standard A5 Vertical Frame Mounted Tracks will cover about 5/8" of a Vertical 3/4" wide Frameless Cabinet Upright. When installing consecutive doors side by side, 5/8" thick vertical material used to construct your cabinet box is recommended. This will allow the A5 - Frame Mounted Tracks to butt as shown in the picture just below with dishes. The Fascia Frame Cover Profile at the top of the Kit requires 1/2" thick cabinet box material if cabinet box is to be totally hidden. To see illustrations of how our kits can be installed this way or on existing face frame cabinets, see: TRACK APPLICATIONS

    Click/Details
Pre-Made Kits in Design 2 Only
(Max Opening width for Pre-Cut Kits: 46-1/2")
Available Sizes:
18-1/2"  to 51-1/2" widths
24" to 80-1/2" tall
 QUOTE DESIGN 2

[C3 KIT INSTRUCTIONS DOWNLOAD]

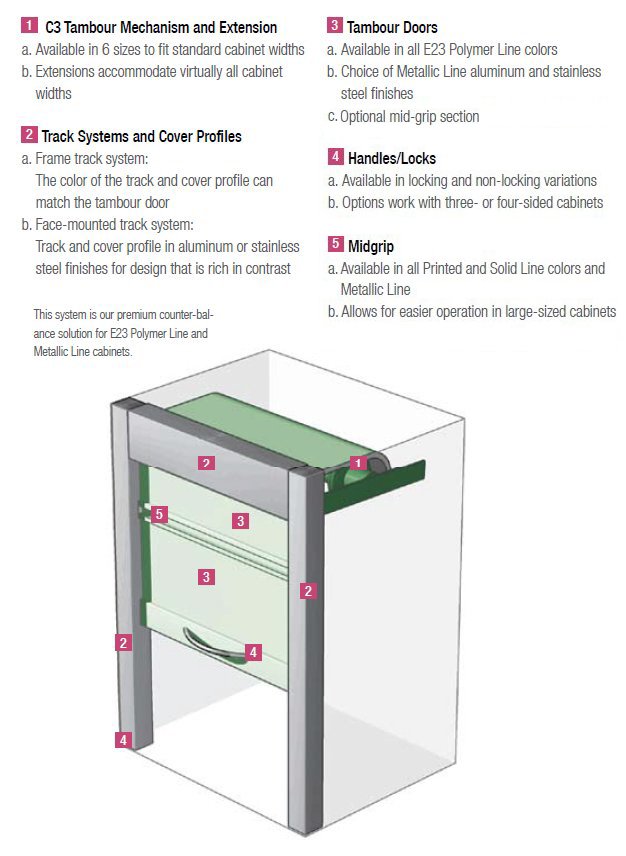

DESIGN 2-
C3 TAMBOUR DOOR KITS
Separate parts shown above will be sent with
your kit for easy installation.

With C3 Counterbalance System

E23 Line Door Slat & Handle

STANDARD SLAT & COLORS:
White - Grey - Black - Aluminum


E23 Kits Standard Handle: Locking Handle Profile
***For a "bottomless" or "3-sided" frameless cabinet box
See E23 "4-sided" handle option at bottom of this page
Top View
Standard Kit Install Choices
Track shown on a frameless cabinet
side wall. Take a 3% discount off
pricing below if using A3.
For more details
see: TRACK APPLICATIONS )



Kits can also butt
together as pictured when
installed in consecutive
frameless cabinet openings.
(1-1/4" of Vertical Cabinet Material
Required for this. Frameless boxes made
with 5/8" thick material required)

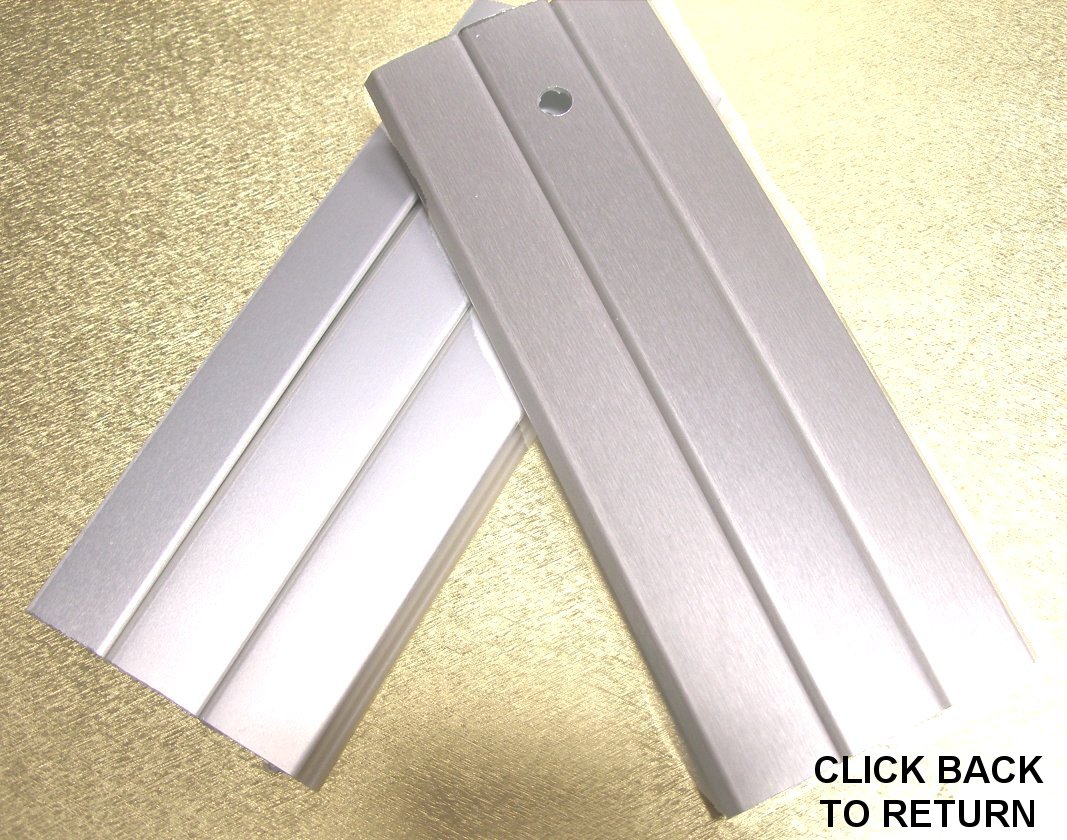

 		 ML Line Door Slat & Handle


STANDARD SLAT & COLORS:
Aluminum - Stainless Steel
(1" Slat is available - add 9% to below prices)
ML Kits Standard Handle: Combo-Grip with Retainer
For Locking Doors use our ML Locking Handle Profile



COLORS:
E23 PVC: White, Grey, Black & Printed Aluminum
ML Aluminum Clad Metallic Line: Aluminum (appears  as Satin Stainless)
ML Aluminum Clad Metallic Line: Stainless Steel (appears as Brushed Stainless)

CLICK HERE FOR OUR QUOTE FORM: DESIGN 2 ONLINE QUOTE FORM (Your browser must be set to allow pop-up windows)
ALL $5.00 box fee + shipping

DESIGN 2 - C3 STANDARD KITS - PRICING TABLE
 OLD PRICING SHOWN - CURRENT PRICES ARE APPRX 5% ABOVE CROSSED OUT PRICES SHOWN - QUOTE ONLY
 To price a custom sized kit with Standard Parts use the next highest opening size prices listed and add 5%.
DISCOUNTS OFF LIST PRICE SHOWN:
*  UP TO $849.00: NO DISCOUNT  *  $850.00 TO $1,499.00: 2% DISCOUNT  *  $1500.00+: 4% DISCOUNT  *
$5.00 box fee per kit + shipping

Sizes Available.
*Exact opening size required is 1-1/2" less then BOLD size given* *Extra Mid-grip included for doors 60"+ in height*		 E-23 Poly
White, Gray & Black
 		 E-23 Poly
Printed Aluminum
 		 ML- Aluminum
 Color: Aluminum
 		 ML- Aluminum
 Color: Stainless Steel

Width x Height  (Exact Opening needed)

Price

 Price Price Price
20 x 24 - (Fits 18-1/2" x 22-1/2") $370.11 $395.79 $442.55 $508.78
20 x 36 - (Fits 18-1/2" x 34-1/2") $431.74 $431.74 $513.81 $620.81
20 x 42 - (Fits 18-1/2" x 40-1/2") $436.02 $463.84 $528.15 $633.86
20 x 48 - (Fits 18-1/2" x 46-1/2") $378.56 $395.68 $561.32 $509.10
20 x 60* - (Fits 18-1/2" x 58-1/2") $433.13 $465.71 $594.06 $621.13
20 x 72* - (Fits 18-1/2" x 70-1/2") $462.34 $481.60 $615.03 $633.76

22 x 24 - (Fits 20-1/2" x 22-1/2") $369.89 $388.30 $423.93 $490.70
22 x 36 - (Fits 20-1/2" x 34-1/2") $373.85 $391.08 $437.84 $503.32
22 x 42 - (Fits 20-1/2" x 40-1/2") $376.74 $395.68 $457.74 $513.06
22 x 48 - (Fits 20-1/2" x 46-1/2") $381.34 $398.14 $466.73 $521.41
22 x 60* - (Fits 20-1/2" x 58-1/2") $439.23 $367.43 $545.91 $652.91
22 x 72* - (Fits 20-1/2" x 70-1/2") $461.70 $480.43 $559.82 $677.95

To price a custom sized kit with Standard Parts use the next highest opening size prices listed and add 5%.
DISCOUNTS OFF LIST PRICE SHOWN:
*  UP TO $849.00: NO DISCOUNT  *  $850.00 TO $1,499.00: 2% DISCOUNT  *  $1500.00+: 4% DISCOUNT  *
*  TAKE EXTRA 3% DISCOUNT FOR "A3"  *  $5.00 box fee per kit + shipping

Size E-23 Poly
White, Gray & Black 		E-23 Poly
Printed Aluminum 		ML- Aluminum
 Color: Aluminum		 ML- Aluminum
 Color: Stainless Steel
Width x Height  (Exact Opening needed) Price Price Price Price
24 x 24 - (Fits 22-1/2" x 22-1/2") $354.81 $364.97 $419.01 $497.87
24 x 36 - (Fits 22-1/2" x 34-1/2") $371.93 $386.27 $424.57 $512.31
24 x 42 - (Fits 22-1/2" x 40-1/2") $373.75 $400.18 $434.20 $520.55
24 x 48 - (Fits 22-1/2" x 46-1/2") $389.05 $416.87 $452.82 $529.97
24 x 60* - (Fits 22-1/2" x 58-1/2") $446.51 $468.87 $528.58 $646.49
24 x 72* - (Fits 22-1/2" x 70-1/2") $464.70 $479.46 $548.05 $663.82
24 x 82* - (Fits 22-1/2" x 80-1/2") $476.25 $505.89 $571.59 $688.54

30 x 24 - (Fits 28-1/2" x 22-1/2") $389.48 $407.67 $431.21 $496.48
30 x 36 - (Fits 28-1/2" x 34-1/2") $396.97 $414.09 $453.68 $518.95
30 x 42 - (Fits 28-1/2" x 40-1/2") $401.25 $418.37 $488.99 $554.26
30 x 48 - (Fits 28-1/2" x 46-1/2") $426.93 $442.98 $497.55 $562.82
30 x 60* - (Fits 28-1/2" x 58-1/2") $487.92 $514.67 $588.50 $694.43
30 x 72* - (Fits 28-1/2" x 70-1/2") $506.11 $531.79 $610.97 $716.90
30 x 82* - (Fits 28-1/2" x 80-1/2") $513.60 $539.28 $634.51 $739.37

To price a custom sized kit with Standard Parts use the next highest opening size prices listed and add 5%.
DISCOUNTS OFF LIST PRICE SHOWN:
*  UP TO $849.00: NO DISCOUNT  *  $850.00 TO $1,499.00: 2% DISCOUNT  *  $1500.00+: 4% DISCOUNT  *
*  TAKE EXTRA 3% DISCOUNT FOR "A3"  *  $5.00 box fee per kit + shipping

Size E-23 Poly
White, Gray & Black 		E-23 Poly
Printed Aluminum 		ML- Aluminum
 Color: Aluminum		 ML- Aluminum
 Color: Stainless Steel
Width x Height  (Exact Opening needed) Price Price Price Price
36 x 24 - (Fits 34-1/2" x 22-1/2") $420.51 $437.63 $477.22 $542.49
36 x 36 - (Fits 34-1/2" x 34-1/2") $432.28 $448.33 $509.32 $573.52
36 x 42 - (Fits 34-1/2" x 40-1/2") $450.47 $454.75 $526.44 $591.71
36 x 48 - (Fits 34-1/2" x 46-1/2") $468.66 $52.00 $544.63 $630.23
36 x 60* - (Fits 34-1/2" x 58-1/2") $520.02 $544.63 $649.49 $754.35
36 x 72* - (Fits 34-1/2" x 70-1/2") $530.72 $566.03 $691.22 $796.08
36 x 82* - (Fits 34-1/2" x 80-1/2") $542.49 $575.66 $723.32 $837.81

42 x 24 - (Fits 40-1/2" x 22-1/2") $425.86 $442.98 $502.90 $547.84
42 x 36 - (Fits 40-1/2" x 34-1/2") $436.56 $452.61 $535.00 $578.87
42 x 42 - (Fits 40-1/2" x 40-1/2") $444.05 $460.10 $553.19 $617.39
42 x 48 - (Fits 40-1/2" x 46-1/2") $535.00 $487.92 $571.38 $635.58
42 x 60* - (Fits 40-1/2" x 58-1/2") $546.77 $559.61 $685.87 $769.33
42 x 72* - (Fits 40-1/2" x 70-1/2") $563.89 $570.31 $717.97 $821.76
42 x 82* - (Fits 40-1/2" x 80-1/2") $573.52 $582.08 $749.00 $852.79

To price a custom sized kit with Standard Parts use the next highest opening size prices listed and add 5%.
DISCOUNTS OFF LIST PRICE SHOWN:
*  UP TO $849.00: NO DISCOUNT  *  $850.00 TO $1,499.00: 2% DISCOUNT  *  $1500.00+: 4% DISCOUNT  *
*  TAKE EXTRA 3% DISCOUNT FOR "A3"  *  $5.00 box fee per kit + shipping

Size E-23 Poly
White, Gray & Black 		E-23 Poly
Printed Aluminum 		ML- Aluminum
 Color: Aluminum		 ML- Aluminum
 Color: Stainless Steel
Width x Height  (Exact Opening needed) Price Price Price Price
48 x 24 - (Fits 46-1/2" x 22-1/2") $470.80 $487.92 $527.51 $623.81
48 x 36 - (Fits 46-1/2" x 34-1/2") $482.57 $498.62 $558.54 $642.00
48 x 42 - (Fits 46-1/2" x 40-1/2") $490.06 $505.04 $576.73 $661.26
48 x 48 - (Fits 46-1/2" x 46-1/2") $518.95 $533.93 $616.32 $680.52
48 x 60* - (Fits 46-1/2" x 58-1/2") $579.94 $605.62 $709.41 $815.34
48 x 72* - (Fits 46-1/2" x 70-1/2") $591.71 $615.25 $741.51 $846.37
48 x 82* - (Fits 46-1/2" x 80-1/2") $603.48 $625.95 $773.61 $877.40


*Extra Mid-grip included for doors 60"+ in height*
Additional options available, more details below:
Bow Handle (sizes 5" & 8") (uninstalled) 5"  $9.28            8"  $12.37
Locking Handle Profile & Gliders Cost difference will be added to the price of your kit.
Lock Sets (installed) (keyed alike) $58.13ea

CLICK HERE FOR OUR QUOTE FORM: DESIGN 2 ONLINE QUOTE FORM (Your browser must be set to allow pop-up windows)

STANDARD AND OPTIONAL ITEMS....
STANDARD PARTS INFORMATION ABOUT OUR Design 2 - C3 KITS. HANDLES CAN BE SUBSTITUTED AS DETAILED BELOW.

PRICE EACH
THIS IS THE STANDARD HANDLE & GLIDER THAT WILL COME WITH THE C3 KIT IN OUR METALLIC LINE (ML)
ML LINE
*Sealing Profile Shown Below		 T779480-101 Combo Grip Handle - One Piece - Aluminum ML -
(appears as Satin Stainless )  98 inches		 44.76
T793007-002 Combo Grip Handle -One Piece - Stainless Steel ML  -
(appears as Brushed Stainless) 98 inches		 80.63
ML LINE T221344-001 Combo Grip Handle Glider - One Piece - Right - Grey -
98 inches 		0.54
T221345-001 Combo Grip Handle Glider - One Piece - Left - Grey -
98 inches		 0.54
THIS HANDLE & GLIDER CAN BE SUBSTITUTED IF YOU REQUIRE A LOCKING HANDLE IN OUR METALLIC LINE (ML)
ML LINE		 T779460-001 Locking Handle Profile ML
(appears as Stain Stainless)  98 inches		 61.74
T793006-001 Locking Handle Profile ML -
(appears as Brushed Stainless)  98 inches		 101.70
ML LINE T223865-001 Locking Handle Glider ML  (pair) 2.00

THIS IS THE STANDARD HANDLE & GLIDER THAT WILL COME WITH THE C3 KIT IN OUR PVC E23 LINE FOR A 4-SIDED CABINET BOX. IT IS MADE TO OVERLAY THE BOTTOM OF THE CABINET OPENING. IT WILL ACCEPT A LOCK OR OPTIONAL BOW HANDLE BELOW. A FINGER-PULL SLAT IS USED JUST ABOVE THIS HANDLE FOR OUR STANDARD C3 KIT IN OUR PVC E23 LINE AS WELL. 4-SIDED CABINET BOXES IN OUR ML LINE USE A SIMILAR HANDLE.
E23 LINE     *FINGER-PULL SLAT "MID-GRIP" E23 LINE
*Cover and Handle Pictured		 T779944-001 Frame Locking Handle Base - 98 inches  (Aluminum) 61.10
T779954-001 Frame Locking Handle Cover E-23 Grey - 98 inches 13.25
T779954-002 Frame Locking Handle Cover E-23 White -98 inches 13.25
T779954-003 Frame Locking Handle Cover E-23 Black -98 inches 13.25
T779964-002 Frame Locking Handle Cover E-23 Printed Alum - 98 inches 23.50
E23 LINE T779884-001 Frame Locking Handle Glider - Black 2.00
T779884-004 Frame Locking Handle Glider - Grey 2.00
THIS IS THE STANDARD HANDLE & GLIDER THAT WILL COME WITH THE C3 KIT IN OUR PVC E23 LINE FOR A 3-SIDED CABINET BOX.  THIS HANDLE WILL REST ON A FLAT SURFACE AT THE BOTTOM OF THE OPENING. A FINGER-PULL SLAT IS USED JUST ABOVE THIS HANDLE FOR OUR STANDARD C3 KIT IN OUR PVC E23 LINE AS WELL.
E23 LINE        *FINGER-PULL SLAT "MID-GRIP" E23 LINE		 T779330-001 Locking Handle Profile - Grey E23 - 98 inches 29.84
T779330-002 Locking Handle Profile - White E23 - 98 inches 29.84
T779330-003 Locking Handle Profile - Black E23 - 98 inches 29.84
T779340-002 Locking Handle Profile - Printed Aluminum E23 -
98 inches		 29.84
E23 LINE T779660-001 Locking Handle Glider - Black E23 2.00
*E23 OR ML LINE
*SPECIFY LOCK PLACEMENT. CENTER OR LEFT/RIGHT OF CENTER. 		T700695-001 Tambour Door Lock - Keyed Alike - INSTALLED ONLY 58.13
T700694-001 Tambour Door Lock - Keyed Different - INSTALLED ONLY
***Used for single lock purchases 		58.13
T289174-001 Replacement Key for Keyed Alike Locks-Minimum 10 5.70
*E23 OR ML LINE T779390-002 Adhesive Tape - White (55m) 34.06
*E23 OR ML LINE
*SPECIFY PLACEMENT. 		T779800-002 Bow Handle - 5" - Nickel Plated-Screws NOT included 9.28
T779810-002 Bow Handle - 8" - Nickel Plated-Screws NOT included 12.37
*E23 OR ML LINE T241971-001 Bow Handle/Lock Support (need 2 per Bow Handle)
***Need to cut down for some models.		 0.46


QUOTE DESIGN 2

TAMBOUR DOOR KITS

************



[CLICK HERE TO DOWNLOAD OUR ORDER FORM]     e-mail: info@tapeease.com
(Please - no un-wanted solicitation e-mails will be accepted) (CLICK HERE TO MAKE SURE YOU RECEIVE OUR RESPONSE)

TAPE EASE SUPPLY LLC accepts credit card information by phone or by our secure fax and e-mail services.
We do not keep your Card info stored on our computer systems. You can be assured that your information is safe with us.

          PO Box 816      Denmark, WI 54208
920-863-3571 or 1-888-443-3461      fax: 1-920-863-3570 (If faxing, follow-up with an e-mail to confirm receipt)
 PLEASE NOTE: AT TIMES WE DO HAVE LIMITED PHONE SUPPORT, USING OUR FORMS OR E-MAILING IS USUALLY BEST
Open 8am to 4:00pm central time - Monday - Thursday (Sales office closes at Noon on Fridays)
Pricing may change and if so, you will be notified before your order is processed, E-MAIL US with any questions.
©COPYRIGHT 1999 - 2024 TAPE-EASE SUPPLY LLC.  All Rights Reserved. Unauthorized use or duplication prohibited.
