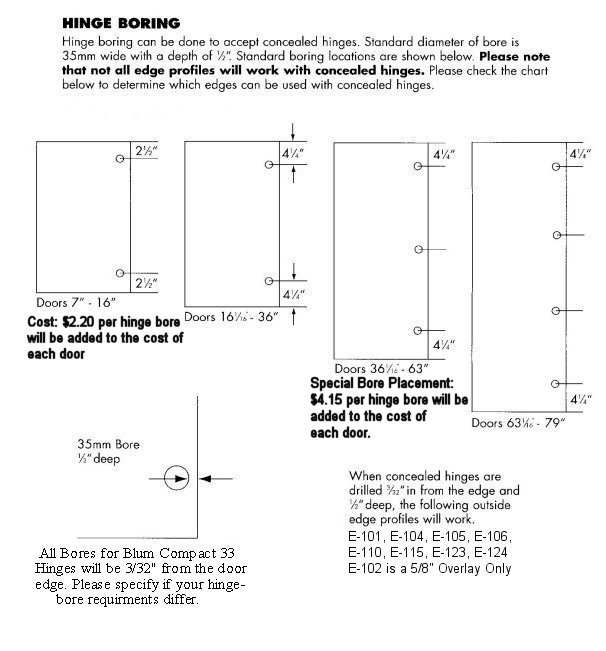

Drill for Concealed Hinges Cost: $2.20/ hole
$4.15/ hole for special placement
Our Standard overlay for concealed
Hinges is for a 1/2" Overlay
Figure door width at 1" larger than the opening.
Height is your preference, usually 1" larger than opening
also. If you use this method with face frame cabinets we do not
the hinge bore specs. We will do the boring and provide the
correct Blum Compact 33 hinges and 1/2" O.L. plates. This standard
bore is a 35mm hole bored at 1/2" depth.
If you are using Frameless, Inset
or another type of hinge other than
the Blum Compact 33. We will need the hinge bore specs from you in order to do
the hinge boring.
We need the specs as shown in the pictures below. If you want
quote on different hinges, we will need MFG part numbers.
See www.blum.com for more help
HERE for BlumtmCompact 33 Concealed
Hinges Pricing and Options
You can also purchase
a drill bit and drill the doors yourself if your doors have many
overlays and you want to fit the doors as you install them.
Compact 33 and other brand hinges use a 35mm hole.
Here. Hinge Left (HL) and Hinge Right (HR) are determined by
looking at the door when closed and in place.
