OTHER
DOOR OPTIONS
Include this info on your form. Use
forms above to submit your quote.
|

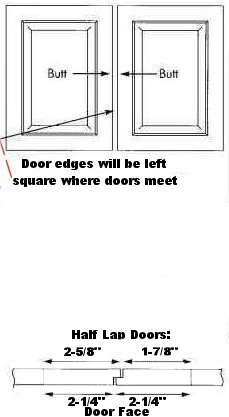

Butt Doors:
Butt doors can be ordered on any doors style with an outside edge profile.
Typically this is used when a pair of doors needs to have one long edge
square where they butt together. Please specify Butt left or Butt right on
all arched doors.
(Cost: $2.60 per door)
_______________________________
Half Lap Edge:
Half lap edges can be ordered on any door style or door edge. This is used
on pairs of doors that meet in the center. The door on the right will open
first unless otherwise noted. The left rail will be 3/8 wider than the
right so the door stiles are the same the width on face.
(Cost: $17.50 per door).
|
 |
|

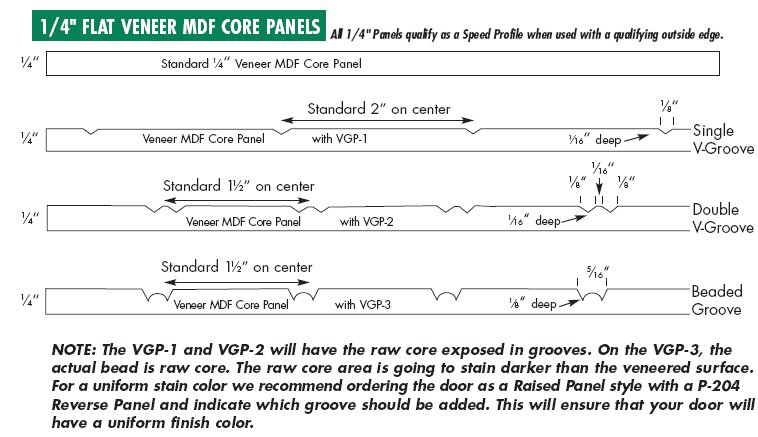

V-Groove Panels:
V-grooves can be added to any door style that does not already have them.
Specify either the single V-Groove VGP-1, 2 or 3
to be added in info column. You may also specify the width between each groove.
These options are not done on any slab drawer fronts or raised center
panels. They can only be done on Flat Panel Doors and drawer fronts, or
doors with our solid wood center panel profile P-204.
(Cost per sq ft)
|
½ spacing |
1 |
1 ½ |
2 |
2 ½ |
|
$4.05 |
$3.90 |
$3.35 |
$2.85 |
$2.50 |
Specify in the "Notes area" |
ROUTED
FINGER PULLS |
|

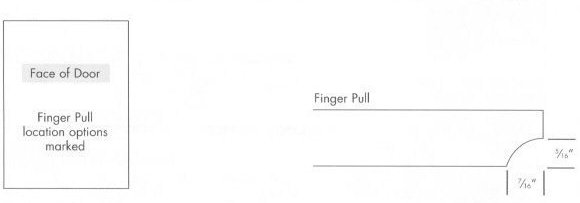

Routed Finger Pull:
Finger pulls can be routed on the backsides of doors and drawers fronts.
The location must be clearly marked.
Please use the abbreviations listed below to indicate where you would like
the finger pull placed.
Finger pulls will only work with the
following outside edge profiles:
E-101, E-104, E-105, E-106, E-110, E-114, E-115, E-117, E-118,
E-121, E-122, E-123, E-124, E-126 and E-127.
(Cost: $4.40 per door).
Finger Pull Placement =
TL (Top Left), TC (Top
Center), TR (Top
Right),
BL (Bottom Left),
BC (Bottom Center ),BR
(Bottom Right)
LSB (Left Side Bottom),
,
LSC (Left Side Center), LST (Left Side Top),
RSB (Right Side Bottom),
,
RSC (Right Side Center), RST (Right Side Top), |
RADIUS CORNERS |
|
Radius Corners:
You can add a radius to the outside edge of doors and drawer fronts. The
following edges E-104, E-105, E-106, E-108, E-118,
E-121, E-123, E-124
& E-126.are available
with a
Ό, ½ or 1 radius.
(Cost: $6.95 per door). |
 |
|
Radius Corners (Front View) = RC (Specify 1/4",
1/2" or 1" in the "Notes area" |
LAZY
SUSAN DOORS OR CORNER DOORS: |
|
Lazy Susan Doors Or Corner Doors:
One option for these types of doors is to use a 45 degree
miter corner
joint. Each door will have one 3 stile that when
mitered together gives
the appearance of 2 Ό stiles to match the rest of the door. This style
will allow you to use a piano hinge or a pie cut hinge.
Please enter the width size of the face of the door on the form, do not
include the miter section.
Another option is to order one door with
one 3 stile on the butt side and a 2 Ό stile on the other door. This
will give the illusion of both styles being 2 Ό wide. Standard hinges can
be used on these doors.
Use abbreviations on
form as shown below.
Cost: 45 degree miter-
$8.60 ea. includes 3" stile
and 45° mitre.
Butt Joint:- $6.45 ea. door
includes 3" stile and butt edge. |
 |
|
Lazy Susan = LZM (Mitered) or LZB (Butt). Include in
"info" column on form. |
|
| |
|
Style |
Red Oak |
Hard Maple |
Cherry |
Alder |
Hickory |
White Birch |
White Oak |
Clear Pine |
Knotty Pine |
Soft Maple |
Paint Grade |
White Ash |
Walnut |
Rustic Alder |
Rustic Cherry |
Rustic Hickory |
|

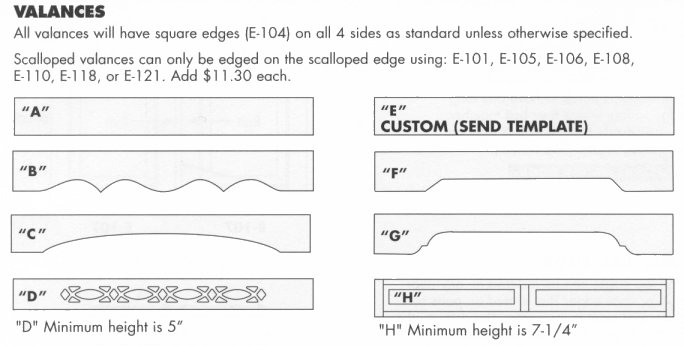

Val A |
$13.04 |
$16.42 |
$19.19 |
$15.29 |
$13.82 |
$14.42 |
$14.26 |
$15.85 |
$15.61 |
$13.99 |
$12.03 |
$14.26 |
$20.26 |
$14.87 |
$20.83 |
$15.84 |
|
Val B |
$16.55 |
$18.13 |
$22.70 |
$18.71 |
$17.32 |
$17.92 |
$17.77 |
$19.35 |
$19.12 |
$17.49 |
$15.53 |
$17.77 |
$22.22 |
$18.37 |
$24.34 |
$19.34 |
|
Val C |
$16.55 |
$18.13 |
$22.70 |
$18.71 |
$17.32 |
$17.92 |
$17.77 |
$19.35 |
$19.12 |
$17.49 |
$15.53 |
$17.77 |
$22.22 |
$18.37 |
$24.34 |
$19.34 |
|
Val D |
$30.579 |
$32.14 |
$36.71 |
$32.42 |
$31.34 |
$31.94 |
$31.78 |
$33.37 |
$33.13 |
$31.51 |
$29.55 |
$31.78 |
$39.04 |
$32.39 |
$38.35 |
$33.36 |
|
Val E |
CUSTOM - SEND TEMPLATE FOR
PRICING |
|
Val F |
$16.55 |
$18.13 |
$22.70 |
$18.71 |
$17.32 |
$17.92 |
$17.77 |
$19.35 |
$19.12 |
$17.49 |
$15.53 |
$17.77 |
$22.22 |
$18.37 |
$24.34 |
$19.34 |
|
Val G |
$16.55 |
$18.13 |
$22.70 |
$18.71 |
$17.32 |
$17.92 |
$17.77 |
$19.35 |
$19.12 |
$17.49 |
$15.53 |
$17.77 |
$22.22 |
$18.37 |
$24.34 |
$19.34 |
|
Val H |
$18.69 |
$20.24 |
$24.72 |
$20.62 |
$19.45 |
$20.04 |
$19.88 |
$21.44 |
$21.21 |
$19.62 |
$17.77 |
$19.88 |
$28.42 |
$20.48 |
$26.34 |
$21.43 |
|
Shelves |
$16.55 |
$18.13 |
$22.70 |
$18.71 |
$17.32 |
$17.92 |
$17.77 |
$19.35 |
$19.12 |
$17.49 |
$15.53 |
$17.77 |
$22.22 |
$18.37 |
$24.34 |
$19.34 |
Other species
available by quote only:
European Beech, Red Birch, Butternut,
Cedar, Lyptus,
African Mahogany, Genuine Mahogany,White Birdseye Hard Maple,
Rustic White Maple, Red Oak Quarter Sawn, White Oak Rift, Poplar.
